Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nama Bagian: | Blok silinder | Bagian No.: | 1002011-PA11 |
|---|---|---|---|
| Model Mesin: | 4JB1 4JB1T 4JB1T-IV | Aplikasi: | NK 100P |
| Merek: | Qingling | Bahan: | Besi cor kelabu berkekuatan tinggi |
| Ukuran Lubang: | 93mm | Ukuran Stroke: | 102mm |
| jenis: | Mesin injeksi bahan bakar listrik | Kata kunci: | Blok mesin Isuzu 4JB1 |

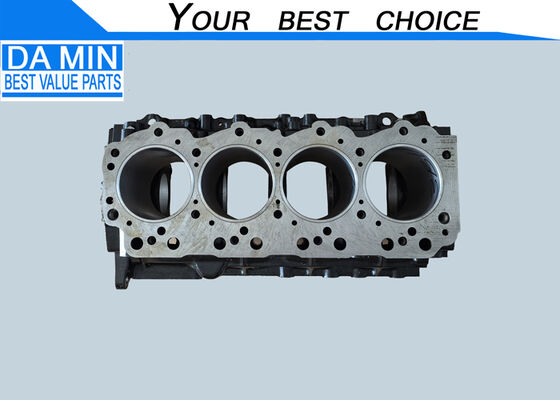

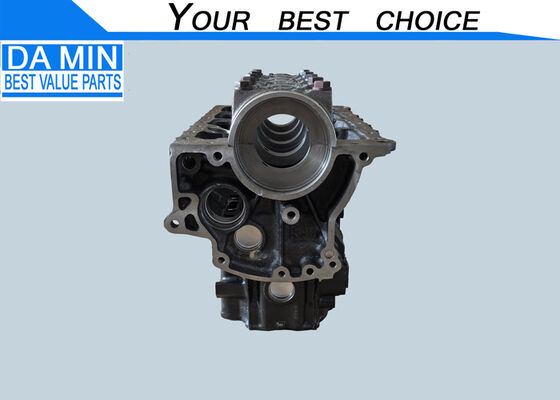

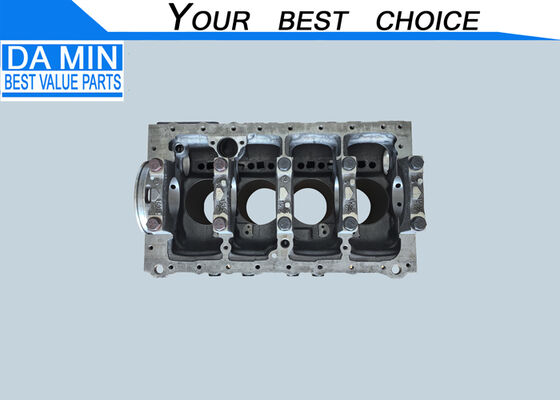

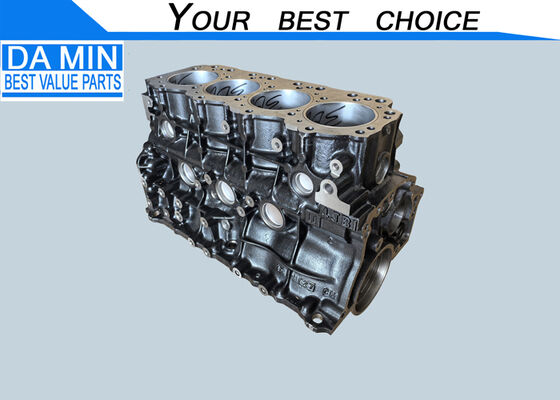

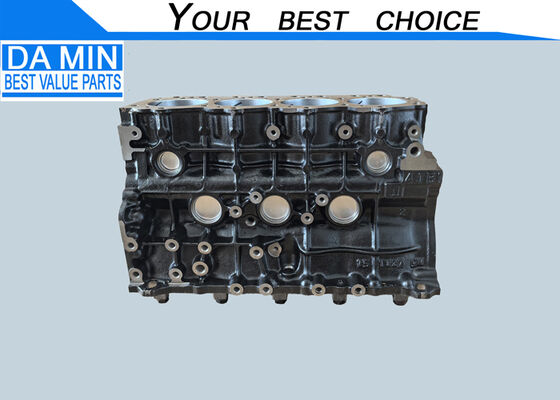

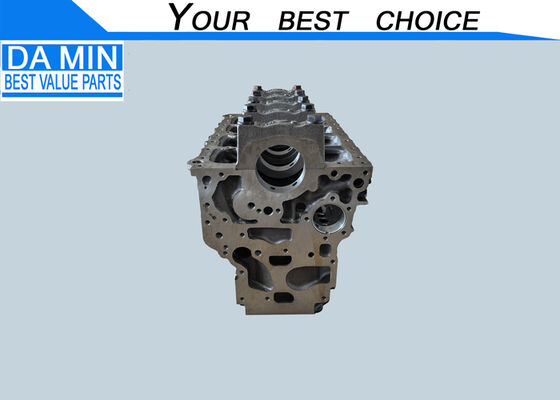

ISUZU 4JB1 Cylinder Block 1002011-PA11 For Qingling IV 100P
| Part name | Cylinder block |
| Application | NKR ; 100P |
| Engine Model | 4JB1 ; 4JB1T ; 4JB1T IV |
| Size | Displacement 2.771L (2771cc), Bore × Stroke: 93mm × 102mm |
| Feature | Symmetrical high-rigidity cylinder block + integrated ladder frame bearing cap, enhancing the crankshaft support rigidity. Optimized dual-layer water jacket and main oil gallery design to improve cooling and lubrication efficiency. Precision honing of cylinder bores with low surface roughness, reducing friction loss of the piston. |
| Function | Adopts high-strength gray cast iron with an integrated linerless design, and the cylinder bore inner wall is strengthened by high-frequency quenching. |
| Part no. | 1002011-PA11 |
| Replace part no. | 1002011PA11 |
Other Important Technical Specifications
Intake Method: Turbocharged intercooled
Valve Mechanism: SOHC, 2 valves per cylinder
Idle Speed: 750±25rpm
Maximum Speed: 4000±100rpm
Minimum Fuel Consumption Rate at Full Load: ≤210g/kW·h
Engine Dimensions: 767×619×787mm
Engine Net Weight: Approximately 240kg
Lubrication System: Pressure lubrication, rotor-type oil pump
Starting Method: Electric start
